LSI MegaRAID SAS 9261-8i Specifications

หน้าแรก Tech Spec LSI MegaRAID SAS 9261-8i Specifications

คุณสมบัติทางเทคนิค

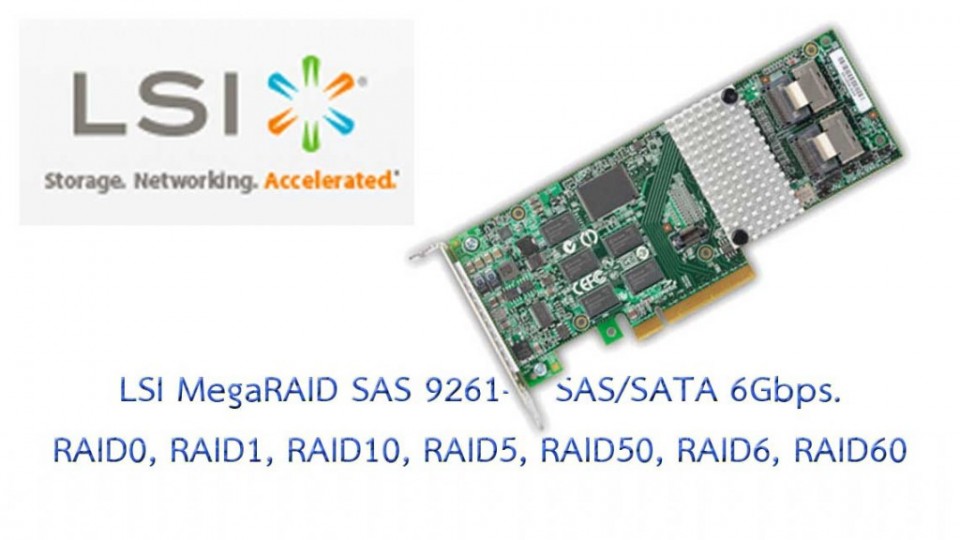

LSI MegaRAID SAS 9261-8i รองรับ SAS/SATA 6Gb

Improve the performance of applications like email and SharePoint while adding the peace of mind of RAID data protection. The MegaRAID® SAS 9261-8i 6Gb/s SATA + SAS RAID controller card provides internal connectivity for the capacity needed by critical business apps. Optional software support includes CacheCade® flash cache acceleration which uses connected solid state drives (SSDs) as front-end cache.

Highlights

  • Connect up to 128 SATA or SAS drives with eight internal 6 Gb/s SATA and SAS ports

  • Fit into rack-mounted servers with low-profile form factor and side-mount connectors

  • Bandwidth to support critical applications with PCIe® 2.0 connectivity

  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60

  • Add more protection and peace of mind with options including heat-tolerant battery backup and advanced software

  • I/O Controller:
    LSISAS2108 RAID-on-Chip (ROC)
    Controller Speed:
    PowerPC @ 800 MHz
    Cache Memory:
    512MB 800MHz DDR II SDRAM
    Connectors:
    Two mini-SAS internal connectors (SFF8087)
    Storage Connectivity ; Data Transfer Rates :
    8 ports : SATA III 6Gb/s, SAS 2.0 Compliant
    Data Transfer Rates:
    Up to 6Gb/s per port
    Host Bus :
    x8 lane, PCI Express 2.0 compliant
    RAID Levels :
    RAID 0
    :
    RAID 1
    :
    RAID 5
    :
    RAID 6
    RAID Spans :
    RAID 10
    :
    RAID 50
    :
    RAID 60
    Key RAID Data Protection Features:
    RAID levels 0, 1, 5, and 6
    :
    RAID spans 10, 50 and 60
    :
    Online Capacity Expansion (OCE)
    :
    Online RAID Level Migration (RLM)
    :
    Auto resume after loss of system power during array rebuild or reconstruction (RLM)
    :
    Single controller Multipathing (failover)
    :
    Load Balancing
    :
    Confgurable stripe size up to 1MB
    :
    Fast initialization for quick array setup
    :
    Check Consistency for background data integrity
    :
    SafeStore Encryption Services – Instant Secure Erase
    :
    SSD Support with SSD Guard™
    :
    Patrol read for media scanning and repairing
    :
    64 logical drive support
    :
    Up to 64TB LUN support
    :
    DDF compliant Confguration on Disk (COD)
    :
    S.M.A.R.T support
    :
    Global and dedicated Hot Spare with Revertible Hot
    :
    Spare support – Automatic rebuild – Enclosure afnity – Emergency SATA hot spare for SAS arrays
    :
    Enclosure management – SES (inband) – SGPIO (sideband)
    Operating Voltage:
    3.3 V
    Battery Backup Unit:
    LSIiBBU07 (Optional)
    OS Support:
    Microsoft Windows
    :
    Linux (SuSE , Red Hat)
    :
    Solaris
    :
    VMware ESX/ESXi
    Warranty:
    1 Year (by BeCoolTech)
    I/O Controller
    Controller Speed
    Cache Memory
    Connectors
    Storage Connectivity ; Data Transfer Rates
    Data Transfer Rates
    Host Bus
    RAID Levels
    RAID Spans
    Key RAID Data Protection Features
    Operating Voltage
    Battery Backup Unit
    OS Support
    Warranty

    13,000 ฿ 11,500 ฿

    Read More

อ้างอิง : LSI 9261-8i
