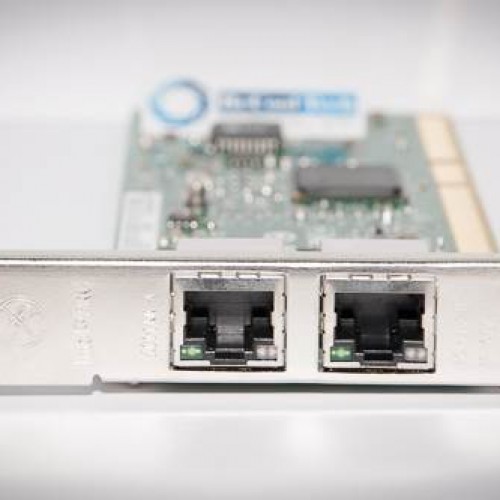

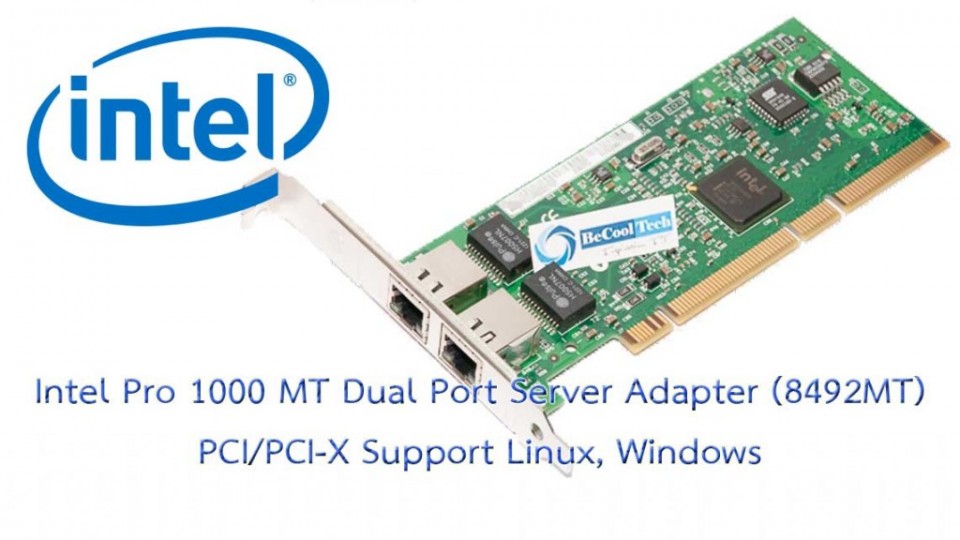

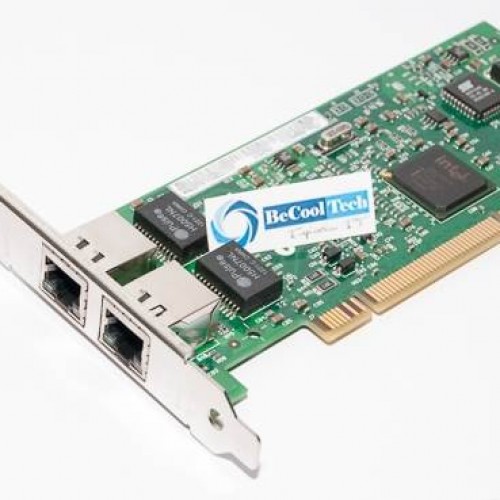

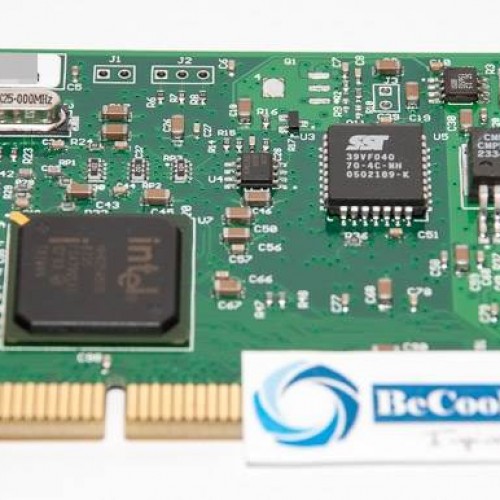

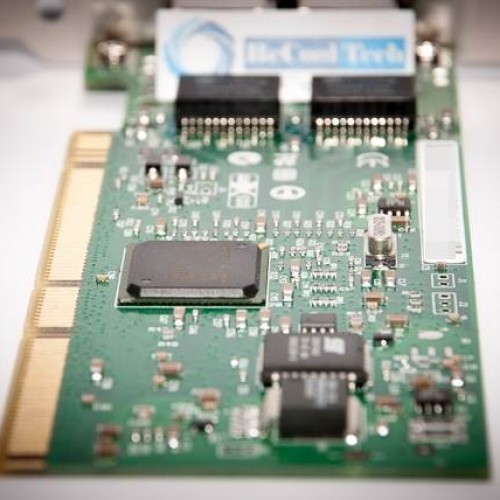

Intel Pro 1000 MT Dual Port Server Specification

คุณสมบัติทางเทคนิค

Product Code:
PWLA8492MT
Network Controller:
Intel 82546
Connectors:
Two RJ-45 Copper
Data Rate:
10, 100, 1000 Mbps.
Bus Type:
PCI/PCI-X
Bus Width:
32 or 64 bit
Bus Speed (MHz.):
33/66/100/133
Onboard Memory:
128 KB
IEEE Support:
802.3ab
Advance Features:
PCI Hot Plug and Active PCI
:
802.1Q VLANs
:
802.3x Flow Control
:
TCP Checksum Offload
:
IEEE 802.1p
:
TCP Segmentation/Large Send Off-Load
:
Interrupt Moderation.
TEAMING Support ** :
Adapter Fault Tolerance
:
Switch Fault Tolerance
:
Adaptive Load Balancing
:
Fast EtherChannel
:
Gigabit EtherChannel
:
802.3ad (Ling Aggregation Control)
Widesperad Compatibility:
Support for Most NOSs
:
Intel SingleDriver Technology
:
Support 64 or 32 bit PCI-X or PCI 2.2 buses
:
Remote Management Support (Wfm, RIS, SNMP/DMI)
:
IEEE 802.3ab Compatibility
Network Management:
Intel Boot Agent
:
ACPI Power Management
:
Wake on LAN
:
PXE 2.0
:
DMI 2.0 Support
:
WfM Baseline v2.0
Operating System Support:
Windows XP, 2003, 7, 2008 and Early
:
Linux® 2.2, 2.4 and Later
:
NetWare®
:
Solaris™ x86
:
UNIX®
:
VMWare ESX/ESXi
Warranty:
1 Year (by BeCoolTech)
Product Code
Network Controller
Connectors
Data Rate
Bus Type
Bus Width
Bus Speed (MHz.)
Onboard Memory
IEEE Support
Advance Features
TEAMING Support **
Widesperad Compatibility
Network Management
Operating System Support
Warranty

~~1,400 ฿~~ 1,200 ฿
