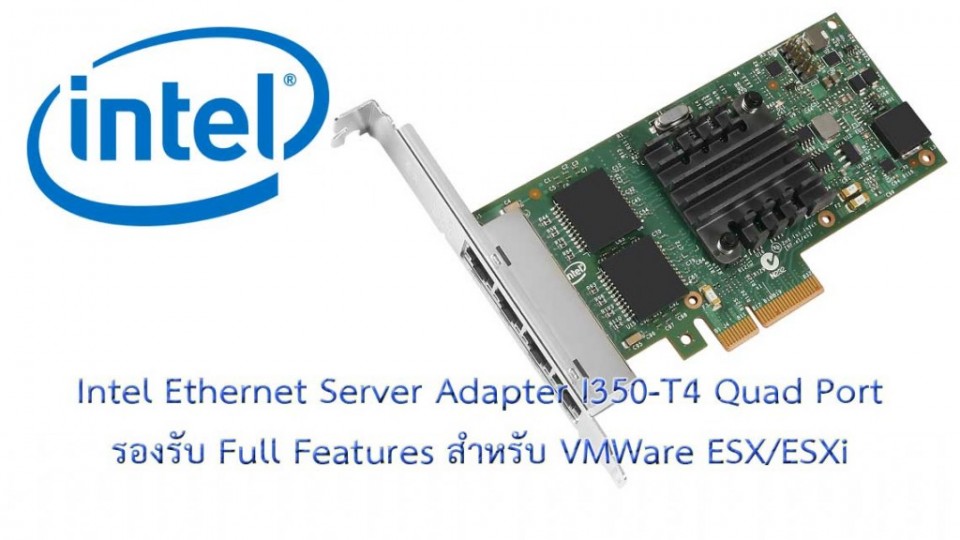

Intel Ethernet Server Adapter I350-T4 Quad Port

Based on the new Intel® Ethernet Controller I350 series, the Intel® Ethernet Server Adapter I350 represents the next step in the GbE networking evolution for the enterprise and data center. It introduces new levels of performance through industry-leading enhancements for both virtualized and Internet small computer system interface (iSCSI) unified networking environments. This new family of adapters also includes new power management technologies such as Energy-Efficient Ethernet (EEE) and direct memory access coalescing (DMAC).

  • Product Code:
    I350-T4
    Network Controller:
    Intel I350
    Connectors:
    Quad RJ-45 Copper
    Data Rate:
    10, 100, 1000 Mbps.
    Bus Type:
    PCI Express 2.1
    Bus Width:
    5 GT/s Lane x 4 Lane
    Bus Speed (MHz.):
    20 Gbps uni-directional
    :
    40 Gbps bi-directional
    Advance Features:
    Support for Packet up to 9.5k Bytes (Jumbo Frames)
    :
    Multiple queues & receive-side scaling (DMA, DCA)
    :
    MSI-X support
    :
    Low Latency Interrupts
    :
    Multiple queues: 8 queues per port
    :
    Tx/Rx IP, SCTP, TCP and UDP Checksum offload (IPv4, IPv6)
    :
    Tx TCP segmentation offload (IPv4, IPv6)
    :
    Transmit Segmentation Offloading (TSO)
    :
    Header Splits and Replication in Receive
    :
    Receive and Transmit Side Scaling for Windows
    :
    Scalable I/O for Linux
    TEAMING Support ** :
    Adapter Fault Tolerance
    :
    Switch Fault Tolerance
    :
    Adaptive Load Balancing
    :
    Fast EtherChannel
    :
    Gigabit EtherChannel
    :
    802.3ad (Ling Aggregation Control)
    Virtualization Features:
    Support for PCI-SIG SR-IOV Specification
    :
    RX/Tx Round-Robin Scheduling
    :
    Traffic isolation
    :
    Traffic Steering
    :
    VM to VM Packet forwarding
    :
    MAC and VLAN anti-spoofing
    :
    Strom control
    :
    Virtual Machine Device queues (VMDq)
    :
    Advance Packet Filtering
    :
    VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
    Network Management:
    DMA Coalescing
    :
    Smart Power Down (SPD)
    :
    Active State Power Management (ASPM) Support
    :
    LAN Disable function
    :
    Advanced filtering capabilities
    :
    PXE Support
    :
    Wake-on-LAN Support
    :
    Watchdog timer
    :
    IEEE 1588 precision time control protocol
    :
    iSCSI boot
    :
    Simple Network Management Protocol (SNMP)
    :
    Remote Network Monitoring (RMON)
    :
    Management Component Transport Protocol (MCTP)
    :
    Controller Memoty Protection
    :
    Vital Product Data (VPD) Support
    :
    Windows XP, 2003, 7, 2008 and Latest
    Operating System Support:
    Linux? 2.2, 2.4 and Later
    :
    NetWare
    :
    Solaris x86
    :
    UNIX
    :
    VMWare ESX/ESXi (Full Features Support)
    Product Code
    Network Controller
    Connectors
    Data Rate
    Bus Type
    Bus Width
    Bus Speed (MHz.)
    Advance Features
    TEAMING Support **
    Virtualization Features
    Network Management
    Operating System Support

    8,000 ฿

    Read More

อ้างอิง : Intel.com
