Intel Ethernet Server Adapter I340 T2 Dual Port Specifications

หน้าแรก Tech Spec Intel Ethernet Server Adapter I340 T2 Dual Port Specifications

คุณสมบัติทางเทคนิค

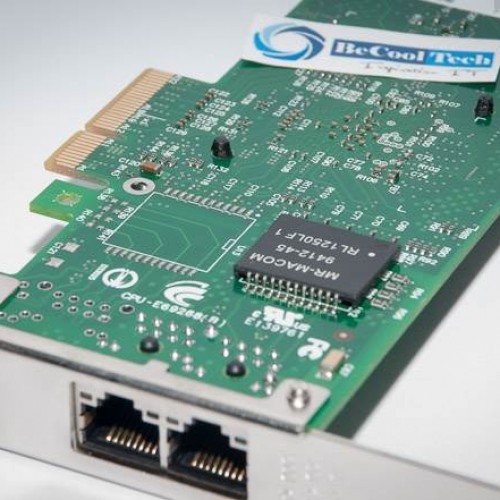

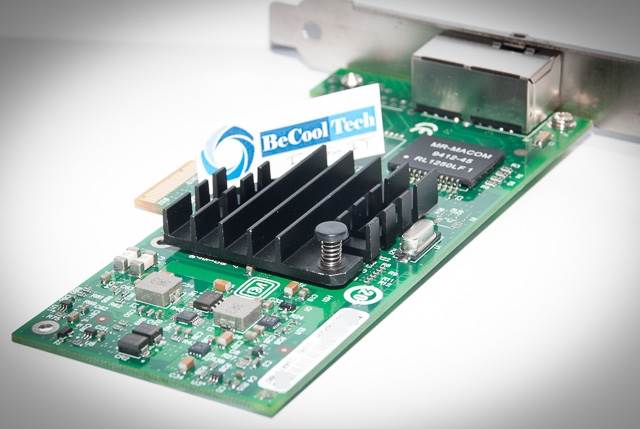

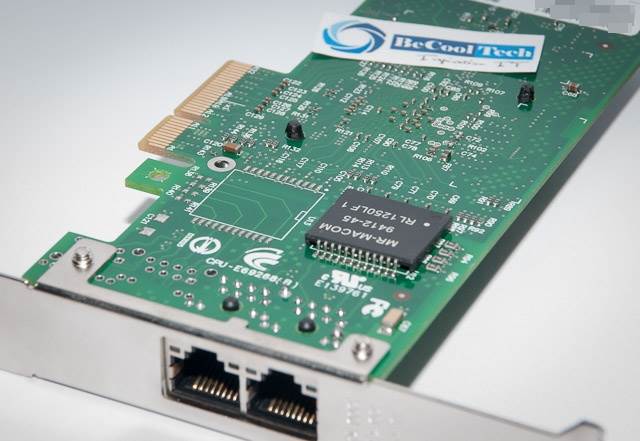

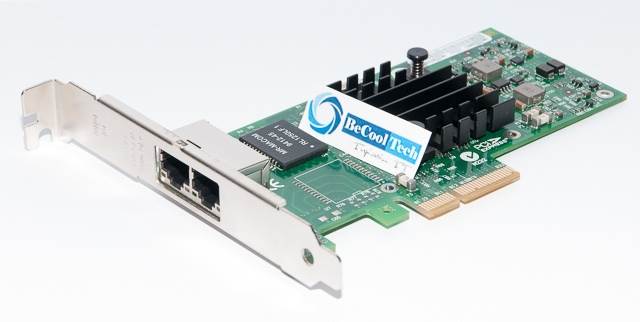

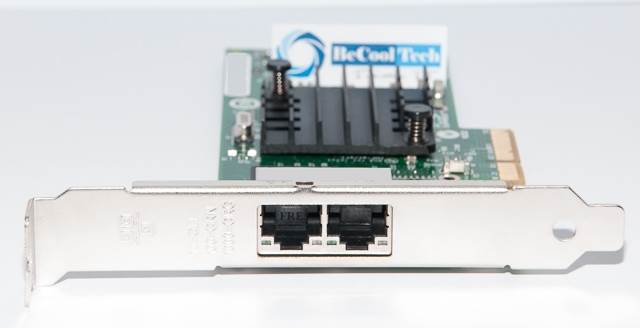

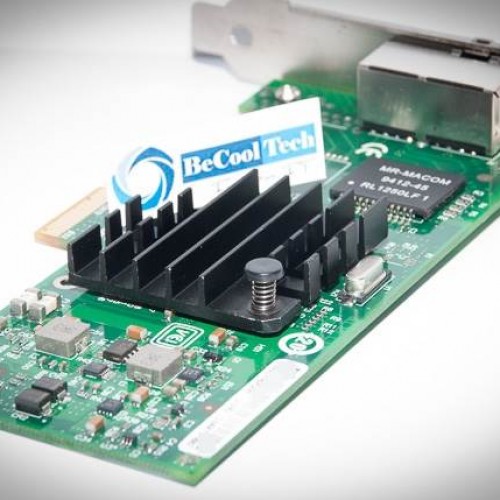

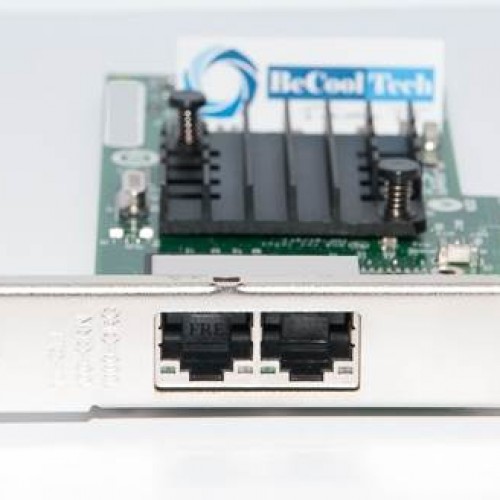

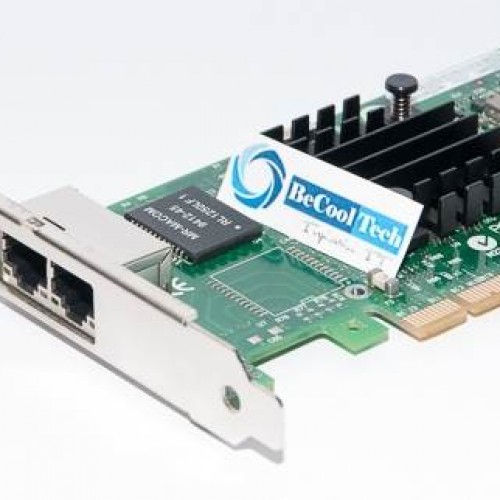

Intel Ethernet Server Adapter I340-T2 Dual Port

Based on the new Intel® 82580 Gigabit Ethernet Controller, the Intel® Ethernet Server Adapter I340 is Intel’s fourth generation PCIe* GbE adapter. This adapter showcases the industry’s first fully integrated quad-port PCIe Gen2 GbE controller, providing a smaller footprint and lower power dissipation. In addition, the Intel® Ethernet Server Adapter I340 offers advanced features, including support for multi-core processors and server virtualization as well as a scalable PCI Express* Gen 2.0 interface.

Intel’s first eco-friendly halogen-free board combines low power and cost for the best price/performance ratio in a quad-port solution available today.

  • Product Code:
    I340-T2
    Network Controller:
    Intel 82580
    Connectors:
    Two RJ-45 Copper
    Data Rate:
    10, 100, 1000 Mbps.
    Bus Type:
    PCI Express 2.0
    Bus Width:
    5 GT/s Lane x 4 Lane
    Bus Speed (MHz.):
    20 Gbps uni-directional
    :
    40 Gbps bi-directional
    Advance Features:
    Multiple queues & receive-side scaling (DMA, DCA)
    :
    MSI-X support
    :
    Low Latency Interrupts
    :
    Multiple queues: 8 queues per port
    :
    Tx/Rx IP, SCTP, TCP and UDP Checksum offload (IPv4, IPv6)
    :
    Tx TCP segmentation offload (IPv4, IPv6)
    :
    Header Splits and Replication in Receive
    :
    Receive and Transmit Side Scaling for Windows
    :
    Scalable I/O for Linux
    TEAMING Support ** :
    Adapter Fault Tolerance
    :
    Switch Fault Tolerance
    :
    Adaptive Load Balancing
    :
    Fast EtherChannel
    :
    Gigabit EtherChannel
    :
    802.3ad (Ling Aggregation Control)
    Virtualization Features:
    Virtual Machine Device queues (VMDq)
    :
    Advance Packet Filtering
    :
    VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
    Network Management:
    Advanced filtering capabilities
    :
    PXE Support
    :
    Wake-on-LAN Support
    :
    Watchdog timer
    :
    IEEE 1588 precision time control protocol
    :
    iSCSI boot
    :
    Simple Network Management Protocol (SNMP)
    :
    Remote Network Monitoring (RMON)
    Operating System Support:
    Windows XP, 2003, 7, 2008 and Latest
    :
    Linux® 2.2, 2.4 and Later
    :
    NetWare®
    :
    Solaris™ x86
    :
    UNIX®
    :
    VMWare ESX/ESXi
    Warranty:
    1 Year (by BeCoolTech)
    Product Code
    Network Controller
    Connectors
    Data Rate
    Bus Type
    Bus Width
    Bus Speed (MHz.)
    Advance Features
    TEAMING Support **
    Virtualization Features
    Network Management
    Operating System Support
    Warranty

    4,000 ฿ 3,700 ฿

    หยิบใสตะกร้า

Intel I340-T2 Dual Port Server LAN Card PCIe 4x 5GT/s
INTEL I340 T2 LAN Card Server 2 Port รองรับ VMWare ESX/ESXi, Windows, Linux
Intel I340-T2 Dual Port Server LAN Card 1000 Mbps. รองรับ Teaming 2 Gbps.
Intel I340-T2 Server LAN Card PCIe 4x v.2 รองรับ 5GT/s

อ้างอิง : Intel.com
